Straight Adapters Range from -02 1/8 th to -32 2 inch. Consisting of Unions Male/Male, Male/Swivel Female, and Female/Female, bulkhead adaptors, reducing adaptors and increasing adaptors, Caps and plugs.
Nipple BSPT x BSPT
10101 – 0202
Adapt Male BSPT x Swivel Female BSPP
10113 – 0202
Nipple Cross Over BSPT x NPTF
10119 – 0404
Nipple BSPT x JIC
10125 – 0207
Adapt Male BSPT x Swivel Female JIC
10127 – 0207
Nipple BSPT x SAE 45 Deg. Flare
10135 – 0410
Nipple BSPT x LP Hose Tail
10165 – 0808
Nipple BSPT x JIS Metric Komatsu
10175 – 0412
Nipple BSPP x BSPP Bonded Seal Style (Seals not Included)
10303 – 0202
Adaptor Union BSPP x ORFS Swivel Female (Bonded Seal Not Included)
10347 – 0209
Nipple BSPP x JIC ED/WD Seal
10425 – 0207
Nipple BSPP ED/WD Seal x JIC Bulkhead
10429 – 0814
Nipple BSPP x ORFS ED/WD Seal
10445 – 0209
Nipple BSPP x BSPT Bonded Seal (Seal not Included)
10501 – 0202
Adapt. Male BSPP x Swivel Female BSPP Incl. Bonded Seal
10513 – 0404
Nipple BSPP x NPTF Bonded Seal (Seal not Included)
10519 – 0404
Nipple BSPP x JIC Incl. O-Ring Retaining Ring
10625 – 0207
Adapt Male BSPP x Swivel Female JIC Incl. O-Ring & Retaining Ring
10627 – 0407
Nipple BSPP x LP Hose Tail
10665 – 1212
Nipple Bulkhead BSPP
10803 – 0404
Adapt Fixed Female BSPT x Swivel Female BSPP
11013 – 0404
Adapt BSPT Fixed Female x JIC Male
11025 – 0207
Adapt BSPT Fixed Female x JIC Male
11125 – 0407
BSPP Swivel Nut Union
11313 – 0808
Nipple NPTF x NPTF
11919 – 0202
Adapt Male NPTF x Swivel Female NPSM
11922 – 0202
Nipple NPTF x JIC
11925 – 0205
Adapt Male NPTF x Swivel Fem JIC
11927 – 0207
Adapt Male NPTF x Fem SAE O-Ring
11934 – 0812
Nipple NPTF x ORFS
11945 – 0209
Adapt Female NPTF x Male JIC
12125 – 0207
Adaptor JIC Male x BSPP Swivel Female
12513 – 1408
Nipple JIC x JIC
12525 – 0505
Adaptor JIC Swivel Female x JIC Male Adaptors
12725S – 0707
JIC Swivel Nut Union
12727 – 0707
Nipple JIC Bulkhead
12925 – 0707
Nipple SAE O-Ring Boss x BSPT
13301 – 0704
Nipple SAE O-Ring Boss x BSPP
13303 – 0904
Adaptor Male SAE O-Ring Boss x Female BSPT
13310 – 0904
Adapt Male SAE ORB x Swivel Female BSPP
13313 – 0704
Adaptor Male SAE O-Ring Boss x Female NPTF
13321 – 0704
Nipple SAE O-Ring Boss x JIC
13325 – 0707
Nipple Long SAE O-Ring Boss x JIC
13325L – 0909
Adapt Male SAE ORB x Swivel Female JIC
13327 – 0707
Nipple SAE O-Ring Boss x SAE O-Ring Boss
13333 – 0909
Adapt M/F SAE O-Ring Boss x SAE O-Ring Boss
13334 – 0709 Expander
Nipple SAE O-Ring Boss x ORFS
13345 – 0709
Nipple SAE O-Ring Boss x L.P. Hose Tail
13365 – 1712
Nipple ORFS x JIC
14525 – 0907
Adapt. Male ORFS x Swivel Female JIC
14527 – 0907
Nipple ORFS X ORFS
14545 – 0909
Adap. Female Swivel ORFS x JIC
14725 – 0907
Nipple Bulkhead ORFS
14945 – 0909
Nipple Metric ED/WD Seal x JIC
15425 – 1409
Adaptor SAE O-Ring C61 Flge. x IC Male Includes O-Ring
18625 – 1217
Adaptor SAE O-Ring C62 Flge x JIC Male Includes O-Ring
18725 – 1217
Adaptor SAE O-Ring C62 Flge x ORFS Male Includes O-Ring
18745 – 1219
45° Adaptors
Consist of Unions Male/Male, Male/Swivel Female, Female/Female and bulkhead adaptors.
Elb 45 Male BSPT x Male BSPT
20101 – 0202
Elb 45 Male BSPT x Female Swivel BSPP
20113 – 0202
Elb. 45 Male BSPT x Male JIC
20125 – 0207
Elb 45 Male BSPP ORB x Male JIC
20625 – 0207
Elb 45 Male BSPP ORB x Male ORFS
20645 – 0209
Elb 45 Male NPTF x Fixed Fem NPTF
21921 – 0202
Elb 45 Male NPTF x Swivel Female NPSM
21922 – 0202
Elb 45 Male NPTF x Male JIC
21925 – 0207
Elb 45 NPTF Fixed Female x Fixed Female
22121 – 0404
Elb 45 Male JIC Swivel Female JIC
22527 – 0707
Elb 45 Bulkhead Head JIC
22925 – 0707
Elb 45 Male SAE ORB x Swivel Female BSPP
23313 – 1208
Elb 45 Male SAE ORB x Male JIC
23325 – 0707
Elb 45 Male SAE ORB x Male ORFS
23345 – 0709
Elb 45 Male ORFS x Swivel Female ORFS
24547 – 0909
Elb 45 Bulkhead ORFS
24945 – 0909
90° Adaptors
Consist of Unions Male/Male, Male/Swivel Female, and Female/Female, bulkhead adaptors.
BSPT; BSPP; JIC; ORFS
Elb 90 Male BSPT x Male BSPT
40101 – 0202
Elb 90 Male BSPT x Fixed Female BSPT
40110 – 0202
Elb 90 Male BSPT x Swivel Female BSPP
40113 – 0202
Elb 90 Male BSPT x Male JIC
40125 – 0207
Elb 90 Long Drop Male BSPT x Male JIC
40125L – 0207 DL 30mm
Elb 90 Extra Long Male BSPT x Male JIC
40125LL – 0207 DL 40mm
Elb 90 Male BSPT x Swiv Fem JIC
40127 – 0407
Elb 90 Male BSPT x LP Hose Tail
40165 – 0808
Elb 90 Male BSPP ORB. x BSPT
40601 – 0404
Elb 90 Male BSPP ORB. x Male BSPP Coned
40603 – 0404
Elb 90 Male BSPP ORB. x Swivel Female BSPP
40613 – 0404
Elb 90 Male BSPP ORB x Male JIC
40625 – 0207
Elb 90 Male BSPP ORB x Male ORFS
40645 – 0209
Elb 90 Male BSPP x LP Hose Tail
40665 – 1212

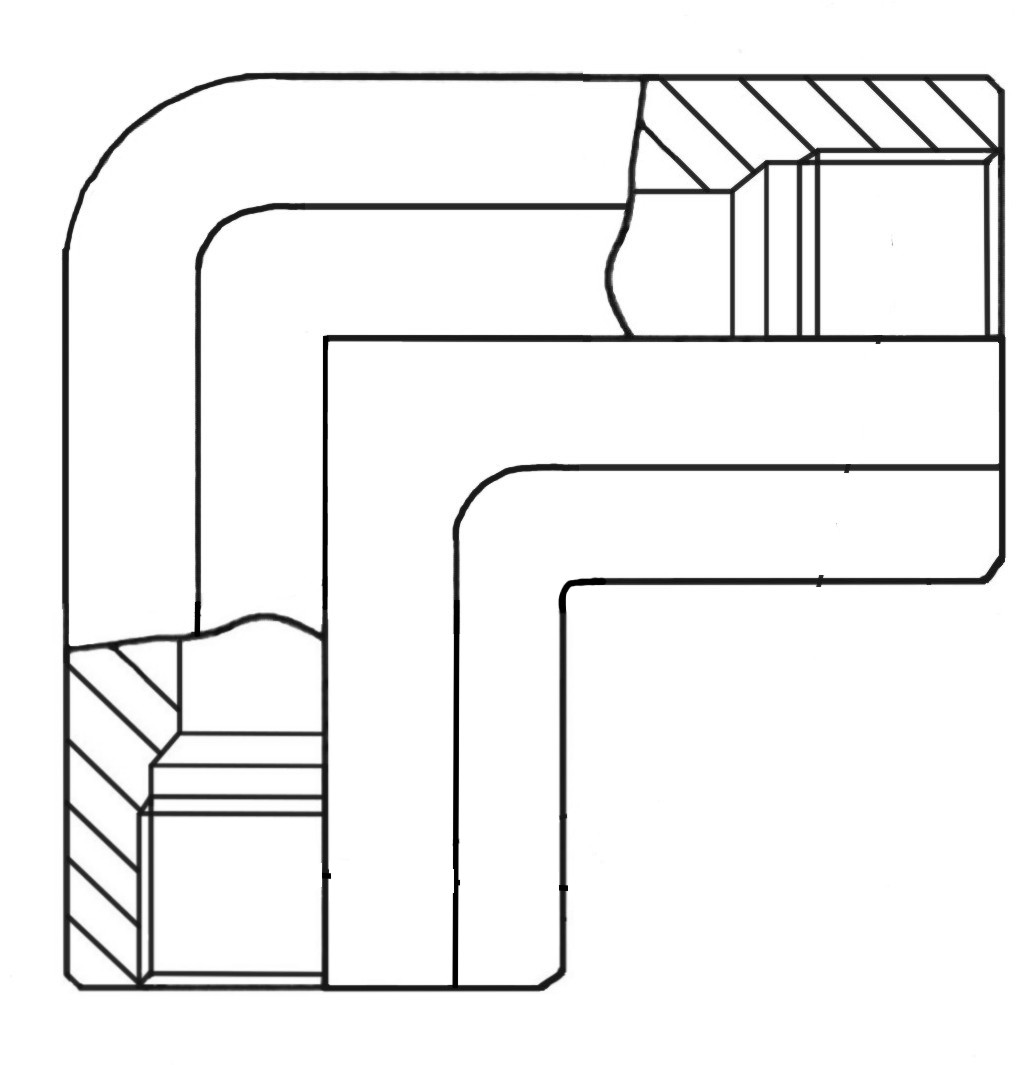

Elb 90 Fixed Female BSPT x Fixed Female BSPT
41010 – 0202
Elb 90 Fixed Female BSPT x Male JIC
41025 – 0409
Elb 90 Male NPTF x Male NPTF
41919 – 0202

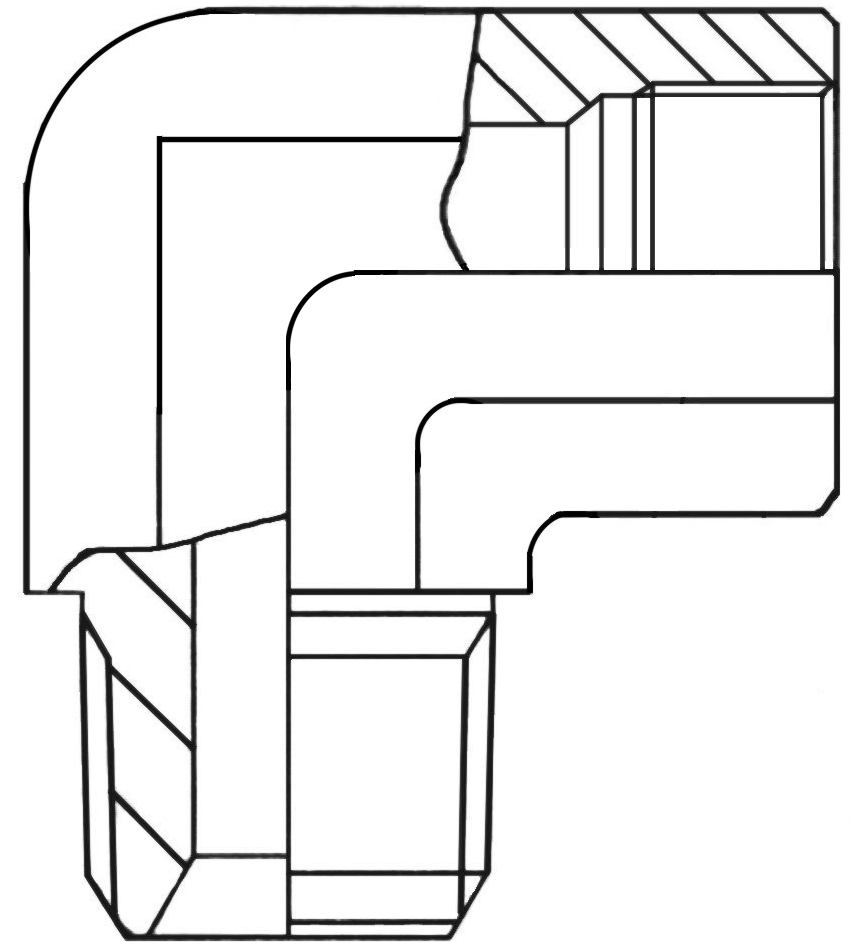

Elb 90 Male NPTF x Fixed Female NPTF
41921 – 0202
Elb 90 Male NPTF x Swivel Female NPSM
41922 – 0202
Elb 90 Male NPTF x Male JIC
41925 – 0207
Elb 90 Long Drop NPTF Male x JIC Male
41925L – 0207 DL 30mm
Elb 90 Extra Long NPTF Male x JIC Male
41925LL – 0207 DL 40mm
Elb 90 NPTF Male x JIC Swivel Female
41927 – 0812
Elb 90 Male NPTF x Male ORFS
41945 – 0209
Elb 90 Fixed Female NPTF x Fixed Female NPTF
42121 – 0202
Elb 90 NPTF Fixed Female x JIC Male
42125 – 0207
Elb 90 JIC Male x JIC Male
42525 – 0707
Elb 90 JIC Male x JIC Swivel Female
42527 – 0707
Elb 90 Male JIC Bulkhead x Male JIC
42925 – 0707
Elb 90 SAE ORB Male x BSPT Male
43301 – 0704
Elb 90 SAE ORB Male x BSPP Male Coned
43302 – 2116
Elb 90 SAE ORB Male x BSPP Swivel Female
43313 – 1208
Elb 90 SAE ORB Male x NPTF Male
43319 – 1708
Elb 90 SAE ORB Male x NPTF Fixed Female
43321 – 2116
Elb 90 SAE ORB Male x JIC Male
43325 – 0707
Elb 90 SAE ORB Male x JIC Male Long Drop
43325L – 0909 DL 42mm
Elb 90 SAE ORB Male x JIC Male Extra Long Drop
43325LL – 0909 DL 53mm
Elb 90 SAE ORB Male x JIC Swivel Female
43327 – 0707
Elb 90 SAE ORB Male x SAE ORB Male
43333 – 1212
Elb 90 SAE ORB Male x ORFS Male
43345 – 0709
Elb 90 Male SAE O-Ring Boss x Swivel Female ORFS
43347 – 0709
Elb 90 SAE ORB Male x LP H/Tail
43365 – 1712
Elb 90 ORFS Male x ORFS Male
44545 – 0909
Elb 90 ORFS Male x ORFS Swivel Female
44547 – 0909
Elb 90 ORFS Male Bulkhead x ORFS Male
44945 – 0909
Elb 90 Male Metric ORB x Male JIC
45625 – 1007
Elb 900 SAE Flge C61 x JIC Male Forged to suit SAE100R12/EN856 4SP
48625 – 1217
Tube Style 45° & 90° Adaptors
JIC is the only style available in 45° and 90°. 90° is available in short and long drop.
45° Swept Bends Tube Style
Tube Bend 45 Male JIC x Swivel Female JIC
32527 – 0707
Tube Bend 45 Flange C61 x Male JIC One Piece Construction
38625 – 1217
Tube Bend 45 Flange C62 x Male JIC One Piece Construction
38725 – 1217
90° Swept Bends Tube Style
Bend 90° JIC Male x JIC Swivel Female
52527 – 0707
Bend 90° Medium Drop JIC Male x JIC Swivel Female
52527M – 0707
Bend 90° Long Drop JIC Male x JIC Swivel Female
52527L – 0707
Bend 90° SAE Flge C61 x JIC Male One Piece Construction
58625 – 1217
Bend 90° SAE Flge C61 x JIC Male Long Drop One Piece Construction
58625L – 1217
Bend 90° SAE Flge C62 x JIC Male. One Piece Construction
58725 – 1217
Bend 90° SAE Flge C62 x JIC Male. Long Drop One Piece Construction
58725L – 1217
Bend 90° SAE Flge C62 x ORFS Male One Piece Construction
58745 – 1219
Tees
Male; Female; Female on the run, Female on the drop. Choice of BSPT, JIC and ORFS.
Tee BSPT Male
6010101 – 020202
Tee BSPT Male x Male x BSPP Swivel Female
6010113 – 080808
Tee BSPT Male x Fixed Female x Fixed Female
6011010 – 020202
Tee BSPP Male x BSPP Male x BSPP Swivel Female
6030313 – 080808
Tee Male BSPP ORB x JIC x JIC
6062525 – 020707
Tee BSPT Fem x Fem x Male
6101001 – 020202
Tee BSPT Fixed Female
6101010 – 020202

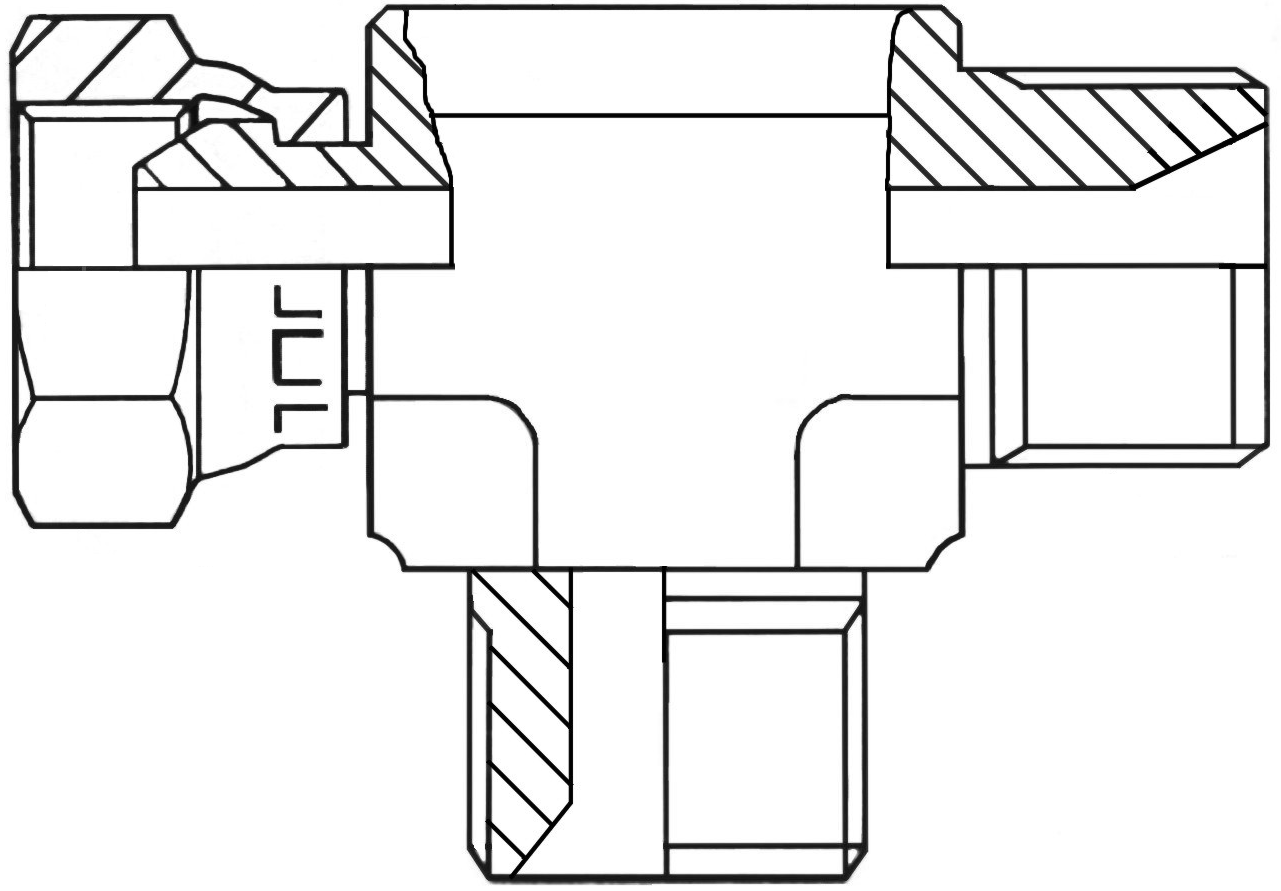

Tee BSPP Swivel Female x BSPT Male x BSPT Male
6130101 – 040404
Tee NPTF Male
6191919 – 040404
Tee NPTF Male x Fixed Female x Fixed Female
6192121 – 020202
Tee Male NPTF x JIC x JIC
6192525 – 020707
Tee NPTF Fem x Fem x Male
6212119 – 040404
Tee Fixed Female NPTF
6212121 – 020202
Tee NPSM x NPSM x NPTF Male
6222219 – 020202
Tee NPSM x NPSM x NPTF Male
6252501 – 070702
Tee Male JIC x JIC x BSPP ORB Branch
6252506 – 070702
Tee Male JIC x JIC x NPTF
6252519 – 070702
Tee JIC Male x Male x Male
6252525 – 070707
Tee JIC Male x Male x Swivel Female
6252527 – 070707
Tee Male Bulkhead Branch JIC
6252529 – 070707
Tee Male JIC x JIC x SAE ORB
6252533 – 070707

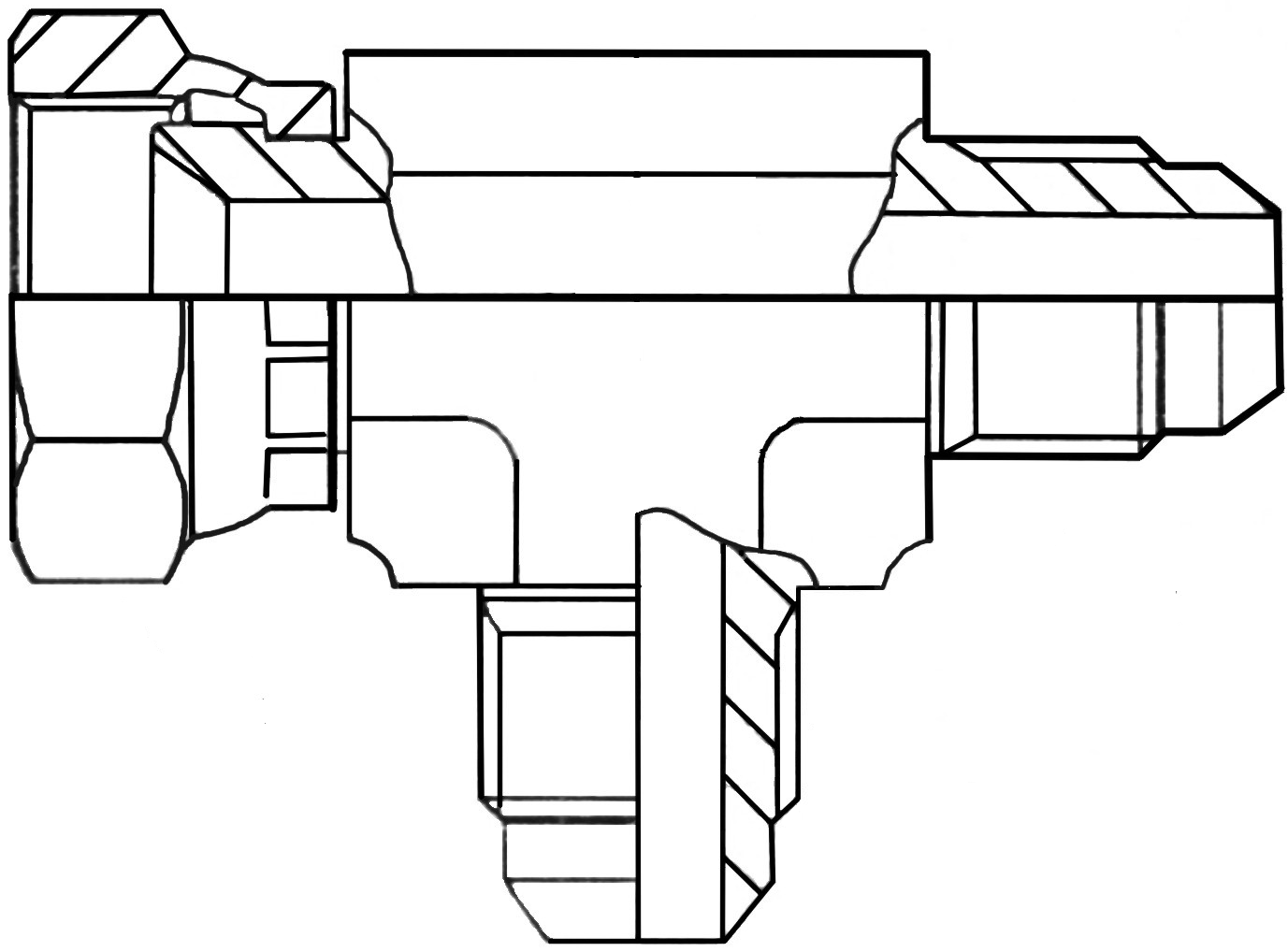

Tee JIC Swivel Female x Male x Male
6272525 – 070707
Tee JIC Bulk Head Male x Male x Male
6292525 – 070707
Tee Male SAE ORB x JIC x JIC
6332525 – 070707
Tee Male SAE ORB x ORFS x ORFS
6334545 – 070909
Tee Male ORFS x ORFS x SAE ORB on Branch
6454533 – 111109
Tee Male ORFS
6454545 – 090909
Tee ORFS Male x Male x Swivel Female on Branch
6454547 – 090909
Tee ORFS Swiv Female x Male x Male
6474545 – 090909
Seals
A range of 90 Durometer O-rings are available for:
BSPP Ports to both BS and ISO Specifications with retaining ring.
ED/WD Seal BSPP & Metric
00400 – 02/10M
O-Ring SAE O-ring Boss (UNO)
03300 – 07
O-Ring ORFS
04500 – 09
Bonded Washer Self Centering. BSPP
00500 – 02
O-Ring Flange Code 61 & Code 62
08600 – 08
Retaining Ring BSPP
R0600 – 02
O-Ring BSPP ISO Spec
00600 – 02
Retaining Ring Metric
R5600 – 10
Flange Fittings
These are available as Straight; 45°, 90° to JIC and ORFS code 61 and 62 one piece adaptors.
Split Flange Half Code 61 (Priced Per Set)
18000 – 08
Split Flange Half Code 62 (Priced Per Set)
18100 – 08
Flange Blanking C61 Includes O-Ring
18600 – 08
Adaptor SAE O-Ring C61 Flge. x JIC Male Includes O-Ring
18625 – 1217
Flange Blanking C62 Includes O-Ring
18700 – 12
Adaptor SAE O-Ring C62 Flge x JIC Male Includes O-Ring
18725 – 1217
Adaptor SAE O-Ring C62 Flge x ORFS Male Includes O-Ring
18745 – 1219
Tube Bend 45 Flange C61 x Male JIC One Piece Construction
38625 – 1217
Tube Bend 45 Flange C62 x Male JIC One Piece Construction
38725 – 1217
Elb 900 SAE Flge C61 x JIC Male Forged to suit SAE100R12/EN856 4SP
48625 – 1217
Bend 900 SAE Flge C61 x JIC Male One Piece Construction
58625 – 1217
Bend 900 SAE Flge C61 x JIC Male Long Drop One Piece Construction
58625L – 1217
Bend 900 SAE Flge C62 x JIC Male. One Piece Construction
58725 – 1217
Bend 900 SAE Flge C62 x JIC Male. Long Drop One Piece Construction
58725L – 1217
Bend 900 SAE Flge C62 x ORFS Male One Piece Construction
58745 – 1219
